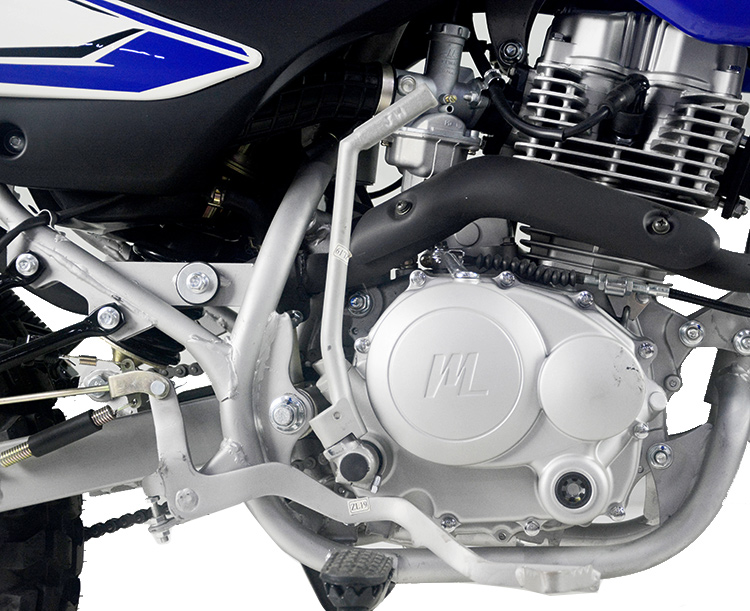

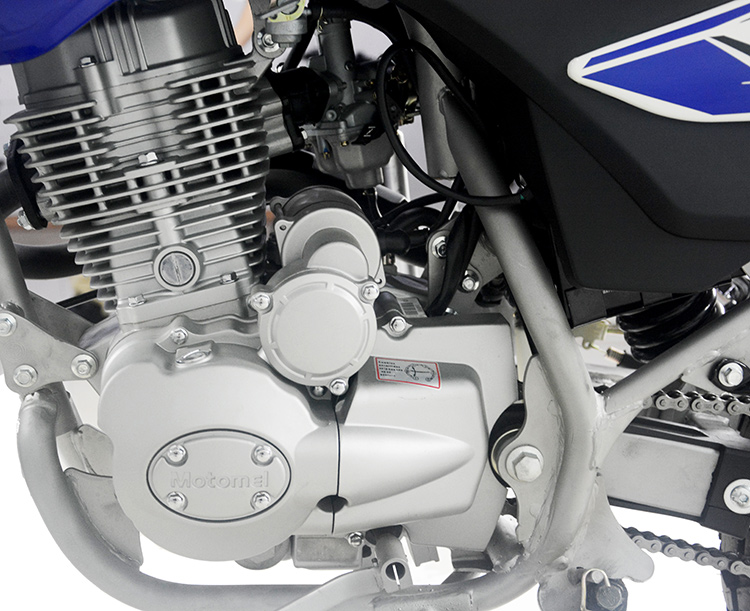

    Engine TypeSingle Cylinder,4-Stroke,Air-cooled
    Displacement(ml)196.4
    Compression Ratio9.2:1
    Bore*stroke85.67*55.7
    Max. Power (kw)10KW/7000r/min
    Max.Torque (N.m)13N.m/5500 r/min
    Transmission5 Gears
    DrivingChain Drive
    StartKick/ Electrically operated
    Spark PlugLG
    Fuel Standard95#
    Clutch typeMulty-Plate,Wet
    IgnitionCDI
    Battery Standard12N7

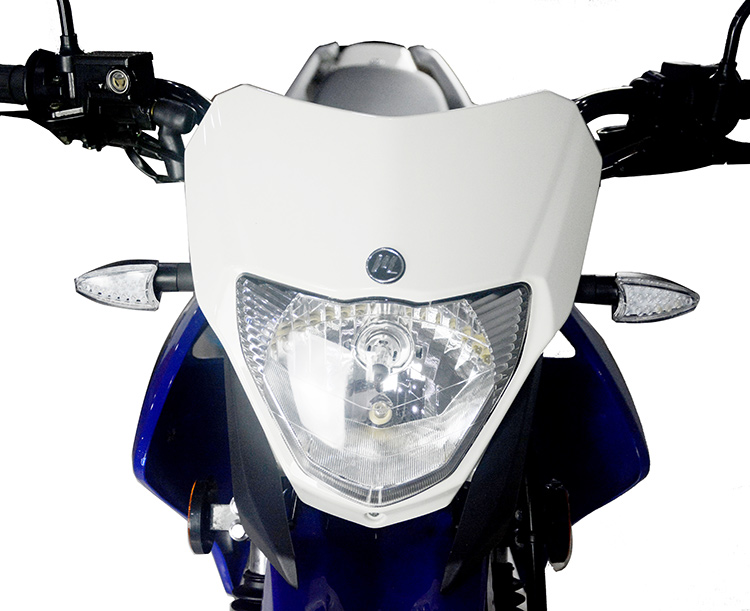

    Head Light12V35W/35W
    L×W×H (mm)2110*855*1170
    Wheel Base (mm)1360
    Ground Clearance (mm)250
    Slope （°）32
    Seat Height(mm)860
    Capacity of Fuel Tank (L)14
    Dry Weight (kg)130
    Max.Load (kg)150
    Max.speed （km/h）95
    Brake TypeFr.: Disc      Rr. :Drum
    Fr.Tyre Size2.75-21
    Rr. Tyre Size4.10-18
